ITU-R BT.656, 8-bit 4:2:2 with embedded syncs

YCbCr 16-bit 4:2:2 with embedded syncs

Pixel-interleaved mode supports up to four-channel D1 multiplexed 8-bit output at 108 MHz

Supports concurrent NTSC and PAL inputs

Accepts NTSC (J, M, 4.43) and PAL (B, D, G, H, I, M, N, Nc, 60) video data

Composite video inputs, pseudo-differential video inputs to improved noise immunity

High-speed 10-bit ADC

Fully differential CMOS analog preprocessing channels with clamping

Integrated anti-aliasing filter

2D 5-line (5H) adaptive comb filter

Noise reduction and auto contrast

Robust automatic video standard detection (NTSC/PAL) and switching

Programmable hue, saturation, sharpness, brightness, and contrast

Luma-peaking processing

Patented architecture for locking to weak, noisy, or unstable signals

Four separate video decoder channels having the following features for each channel

Four independent scalers support horizontal and/or vertical 2:1 downscaling

Channel multiplexing capabilities with metadata insertion

Support crystal interface with on-chip oscillator and single clock input mode

Single 27-MHz clock input or crystal for all standards and all channels

Internal phase-locked loop (PLL) for line-locked clock (separate for each channel) and sampling

Standard programmable video output format

Macrovision copy protection detection

3.3-V Compatible I/O

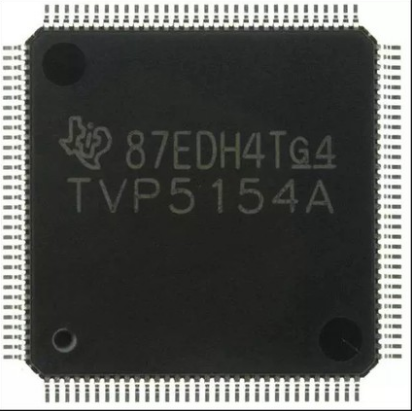

128-pin TQFP package

Available in commercial (0°C to 70°C) temperature range

Integrated four-channel audio ADC with audio sample rate of 8 kHz or 16 kHz

Support Master and Slave mode I2S Output

Support audio cascade connection

Enhanced channel multiplexing capability – Line-interleaved mode

Four-channel D1 multiplexed output at 8 bit at 108 MHz

Video cascade connection for 8-Ch CIF, 8-Ch Half-D1, and 8-Ch CIF + 1-Ch D1 outputs

Also available in Industrial (-40°C to 85°C) temperature range
